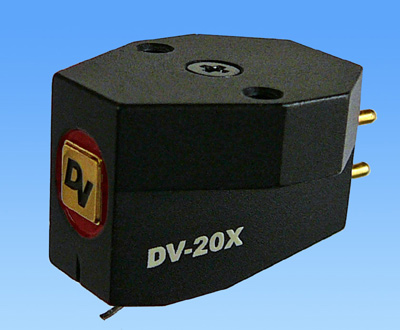

Dynavector DV-20X2 High/Low Output MC Cartridge

Dynavector DV-20X2 High/Low Output MC Cartridge

Available in High or Low Output models

Trade in your old Dynavector cartridge and save $$$

Low Output - DV-20X2L
High Output- DV-20X2H

The DV-20x features-
• solid aluminium alloy body
• magnetic flux damping
• Neodymium magnet
DV-20X has a solid aluminium-alloy body similar to the XX-2. This makes a rigid platform for the cartridge motor and aids secure fitting to the arm. The cantilever is a 6mm length hard aluminium pipe cantilever with a Micro-Ridge diamond stylus.

The magnetic flux damping and softened magnetism, along with powerful Neodymium magnet give the 20XH a healthy 2.8 mV output at a suitable impedance for most MM inputs.

The 20XL has an output of 0.3 mV ideal for most MC phono stages.

Both versions have been made available to help users get the best result for their own circumstances. The high output model suits valve pre-amps, basic amplifiers that only offer MM, or amplifiers with less accomplished MC sections. Using a high output can also be of benefit if you live in an area with high radio frequency interference.

The low output version scores where a system is set up with a good quality MC amp input.


*Type: High/Low output moving coil cartridge with flux damper and softened magnetism
*Output Voltage: 2.8mV / 0.3mV (at 1KHz, 5cm/sec.)
*Channel Separation: 25 dB (at 1KHz)
*Channel balance: 1.0 dB (at 1KHz)
*Frequency response: 20 - 20,000Hz (± 2dB)
*Compliance: 12 x 10-6 cm/dyn
*Tracking force: 1.8 - 2.2grams
*DC resistance: 150 ohms / 5 ohms
*Recommended load resistance: Up to 1K ohms / Up to 30 ohms
*Cantilever: 6mm length, hard aluminium pipe
*Stylus: Micro-Ridge
*Weight: 8.6 grams


FREE! GrooveWorks Deluxe Stylus Force Gauge included. $75 value FREE!




Free shipping within Australia



$1,259.00
