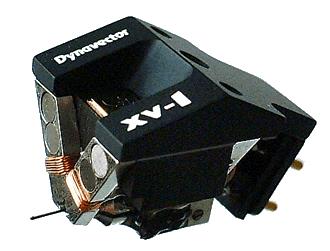

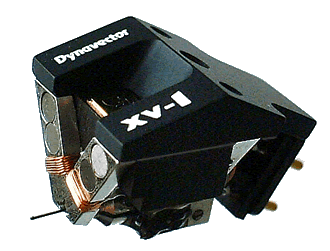

Dynavector DV DRT XV-1s Low Output MC Cartridge

Dynavector DV DRT XV-1s Low Output MC Cartridge

DV DRT XV1s
• 8 Alnico magnets
• magnetic stabilising coils
• square shaped front aperture
Trade in your old Dynavector cartridge and save $$$


The original XV-1 cartridge was designed to take the reproduction of analogue recording to new heights. The XV-1 achieved a standard of performance that was clearly in a league of its own. Dynavector have always remained indifferent to the endless digital formats that proport to be the next breakthrough in music reproduction, safe in the knowledge that the vast heritage of music recorded on vinyl can easily equal, if not clearly out perform these new formats. Dynavector are seriously committed to ensure the vinyl enthusiast is well catered for and the XV-1s is further proof of this on going commitment; yet another ground breaking product, uniquely Dynavector and flagship of the brilliant Dynavector cartridge range.
Dynavector continue to research and have pushed the boundary further with the NEW XV-1s. Although the specifications remain the same a significant upgrade in both magnetic and body parts achieve a startling improvement in imaging, along with a smooth as silk extension over the entire frequency range.

Specifications:

- Type
Low output moving coil cartridge with Multi alnico magnets and Flux damper

- Output Voltage
0.3mV (at 1KHz, 5cm/sec.)

- Channel Separation
30 dB (at 1KHz)

- Channel balance
1.0 dB (at 1KHz)

- Frequency response
20 - 20,000Hz (± 1dB)

- Compliance
10 x 10-6 cm/dyn

- Tracking force
1.8 - 2.2 grams

- Impedance
R=6 ohms, L=18 micro Henry

- Recommended load resistance
> 30 ohms

- Cantilever
6mm length 0.3 mm dia. solid boron

- Stylus
0.14 x 0.08 mm Line contact PF

- Weight
12.6 grams




Free shipping within Australia



$5,999.00
