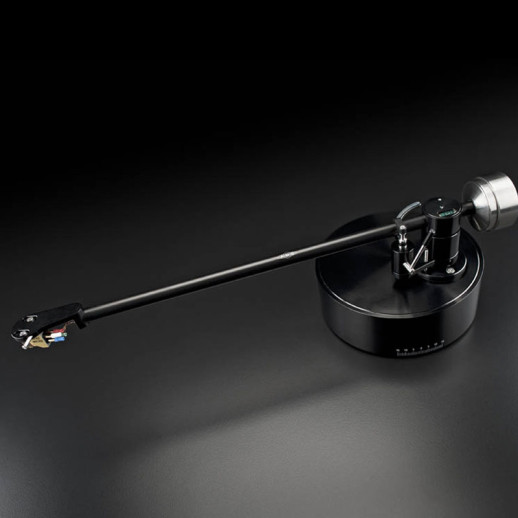

AMG 12J2 12inch Tonearm

“… truly ingenious bit of engineering…” – Michael Fremer

Bearing:

Dual-pivot design replaces the standard gimbaled bearing
Vertical bearing, similar to a technique used in the rotor heads of helicopters
Uses two .5mm thick “spring steel wires,” allowing fine azimuth adjustment while eliminating bearing play
Horizontal axle is a hardened tool steel, precision ground to a backlash-free git with a needle roller bearing
It is extremely precise, maintenance free, and never requires adjustment

Armwand:

Aircraft quality
Anodized aluminum tube for resonance control
12 gram effective mass

Counterweight:

2-piece with Teflon decoupled sleeve

Copper Internal Wiring:

Multiple gauges of high quality copper

Magnetic Anti-skating:

Decoupled via ring magnet and 2-bar magnets
Magnetic fields isolated in our patented bearing housing





VTA:

Precision locking system allowing easy adjustment during play

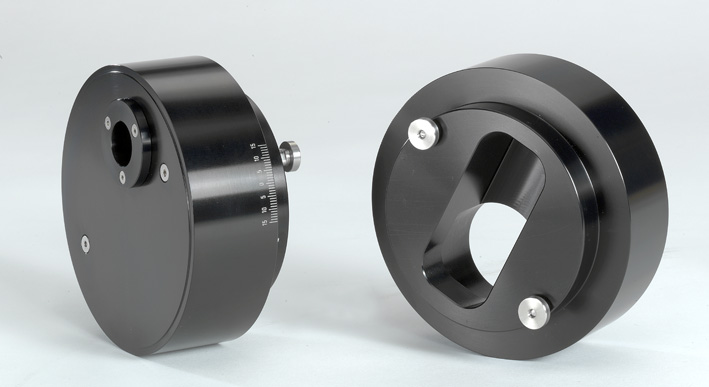

Armboard:

Machined solid aluminum
Bayonet mount with overhang calibration
Pre-cut for AMG and Graham fixed mount
Custom cutouts available
