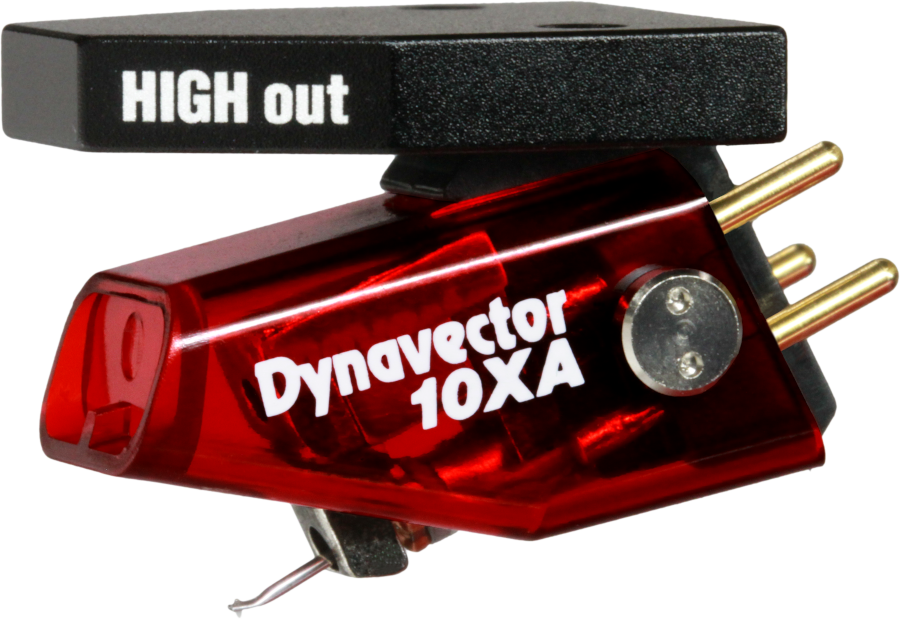

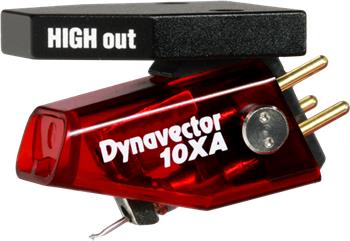

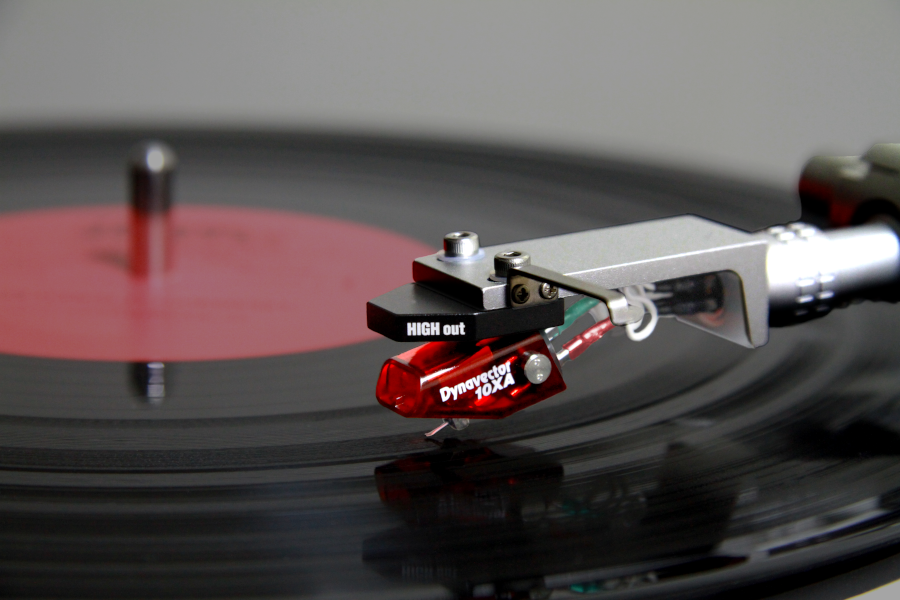

Dynavector DV-10XA Stereo MC Cartridge

DV 10XA High and Low Output
NEW model


NEW Special annealing magnetic circuit
magnetic flux damping and softened magnetism
Neodymium magnet
Nude Diamond “Shibata III” Line Contact
Available in both a high output and low output version
Compatibible with the vast majority of tonearm on the market

The machined aluminum head block ensures a secure, rigid connection to the headshell. With a compliance of 12mm/N and a total weight of 7.5g, the 10XA is compatible with a vast majority of tonearms in the market.The 10XA features a Shibata Type III stylus, known for its superior high-frequency response. The cantilever is made from lightweight, rigid aluminum pipe. This improves groove tracking significantly, enabling higher resolution playback.

The new 10XA incorporates Dynavector’s latest development, a special annealing magnetic circuit. The magnetic circuit, which is the core of an MC cartridge, uses pure iron that has stable magnetic properties with minimal distortion. Furthermore, by performing special annealing that focuses on optimising the magnetic annealing process such as annealing temperature, environment, heating duration, and heating / cooling rates, we have succeeded in delivering expansive resonant sound without distortion and unrivalled resolution.



10XA-H High Output:
Dynavector’s unique coil winding technology made high output MC cartridges possible. By winding an ultra-fine wire many times around the coil bobbin, the phono cartridge can retain a healthy 2.8mV output, eliminating the need for a head amplifier or a step-up transformer. It retains the sonic advantages of an MC cartridge while offering the ease of use of an MM cartridge.

10XA-L Low Output:
The low-output 10XA-L model offers an output voltage of 0.5mV, allowing excellent compatibility with a wide range of step-up transformers and head amplifiers. This model lets you fully experience the distinct qualities of MC playback. Recommended load impedance is 100O or higher.

Trade in your old Dynavector cartridge on a brand new, latest model one and receive a substantial discount!

Special Offer: For a limited time, trade in your DV 10X series cartridge on a brand new DV 10XA model and receive the the Full 10XA Trade In Discount.
Call 0414 755 960


Specifications:

High output moving coil cartridge with flux damper and neodymium magnet


Output voltage:
2.8 mV (at 1kHz 5cm/sec)
Tracking force:
1.8 – 2.2 g
Impedance:
150 ohms
Recommended load impedance:
>1,000 ohms
Channel separation:
25dB (at 1kHz)
Channel balance:
1.0 dB (at 1KHz)
Frequency response:
20 – 20,000 Hz(±2dB)
Compliance:
12 mm/N
Cantilever:
6mm length hardened aluminium pipe
Stylus:
Nude Diamond “Shibata III” Line Contact

Low output moving coil cartridge with flux damper and neodymium magnet

Output voltage:
0.5 mV (at 1kHz 5cm/sec)
Tracking force:
1.8 – 2.2 g
Impedance:
32ohms
Recommended load impedance:
>100 ohms
Channel separation:
25dB (at 1kHz)
Channel balance:
1.0 dB (at 1KHz)
Frequency response:
20 – 20,000 Hz(±2dB)
Compliance:
12 mm/N)
Cantilever:
6mm length hardened aluminium pipe
Stylus:
Nude Diamond “Shibata III” Line Contact
