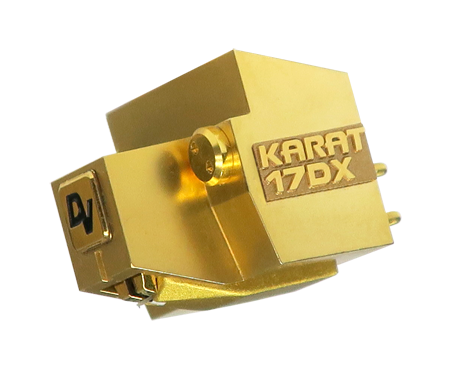

Dynavector DV-17DX Low Output MC Cartridge

Dynavector's 17D3, one of our all-time favourites, has now been significantly improved in the form of the DV-17DX.
Trade in your old Dynavector cartridge and save $$$


Description
Drawing on Dynavector's 'dispersion theory' that produced the original world first KARAT series Dynavector are indeed proud to announce the entirely new 17DX KARAT Diamond phono cartridge. As in the past KARAT series, the frequency response of the new KARAT 17DX at 20 to 20,000 Hz is ruler flat providing an extremely accurate groove tracking ability. However, several new features will ensure that the new 17DX will shortly gain the same legendary status and soon surpass its predecessors.

Features and Improvements
The rationale for the new KARAT 17DX was to significantly improve upon the now legendary original KARAT series. After exhaustive listening and technical research, the decision was made to incorporate a body machined from solid brass, Samarium-cobalt magnets for lower magnetic resistance, unmatched coil winding techniques, the incredible 1.7mm long cantilever with Micro Ridge stylus all combining in a brand-new KARAT 17DX that will delight the listener, providing clear and articulate reproduction of analog recordings without a hint of harshness in the high frequency range.



Specifications
Type: Low output moving coil cartridge with flux damper and softened magnetism
Output Voltage: 0.3mV (at 1KHz, 5cm/sec.)
Channel Separation: 25 dB (at 1KHz)
Channel balance: 1.0 dB (at 1KHz)
Frequency response: 20 - 20,000Hz (± 1dB)
Compliance: 15 mm/N
Tracking force: 1.8 - 2.0 g
Impedance: 32 ohms
Recommended load impedance: > 100 ohms
Cantilever: 1.7mm length solid diamond
Stylus tip: Micro-Ridge
Weight: 11.0 g

FREE! GrooveWorks Deluxe Stylus Force Gauge included. $75 value FREE!
