Telos Grounding Noise Reducer (GNR) V5.1 Plus
The ultimate version of Telos' GNR. Telos technology provides the only active grounding products on today's audio market.
Introduction
Audio component grounding has always been provided for the sole purpose of safety.
For example, shock hazard prevention, lightning protection, noise shielding and other functions. In an audio setup, the effectiveness of the grounding facility has an immediate impact on the background noise.
This noise translates to poor sound quality and greatly lessens the listening experience.
Present Situation
It is almost impossible to get satisfactory grounding facility, let alone one that meets the requirements for audio use.Most of the time, they only adhere to the minimum safety requirements. The common ones have the Neutral wire and the Ground wire connected together, or there is no Ground on the receptacles, leaving the Ground wire unconnected. This allows noise from the home appliances to pollute the Neutral wire, hence, causing interference.
Electrical appliances like inverter air conditioner and those with switching power supplies, like computer, generate the highest level of interference. When the electrical reference point is polluted with noise, it could get into the signal path and you could hear it as noise. The noise could potentially enter the digital circuit and cause bit error.
The Pros and Cons of a Passive Audio Grade Grounding Box
Passive grounding boxes out there are made using materials with good conductivity like copper plates, copper rods, copper mesh, mineral powder or some composite substance.
The good point about the passive, simulated Ground is that it is very easy to make. In fact, most of them can be made easily. The problem is that passive grounding only alleviates voltage change.
Passive grounding boxes are not able to provide near Ground reference voltage. Hence, not able to quickly stabilize the fluctuating potential difference between the audio equipment.
This could be likened to ships on the ocean, always floating, the Ground reference is never stable enough. At the same time, the properties of the minerals or electrolyte will change over time and need to be serviced on a regular basis. This includes material replacement, realignment, or replenishing of the electrolyte before the effectiveness could be restored again.

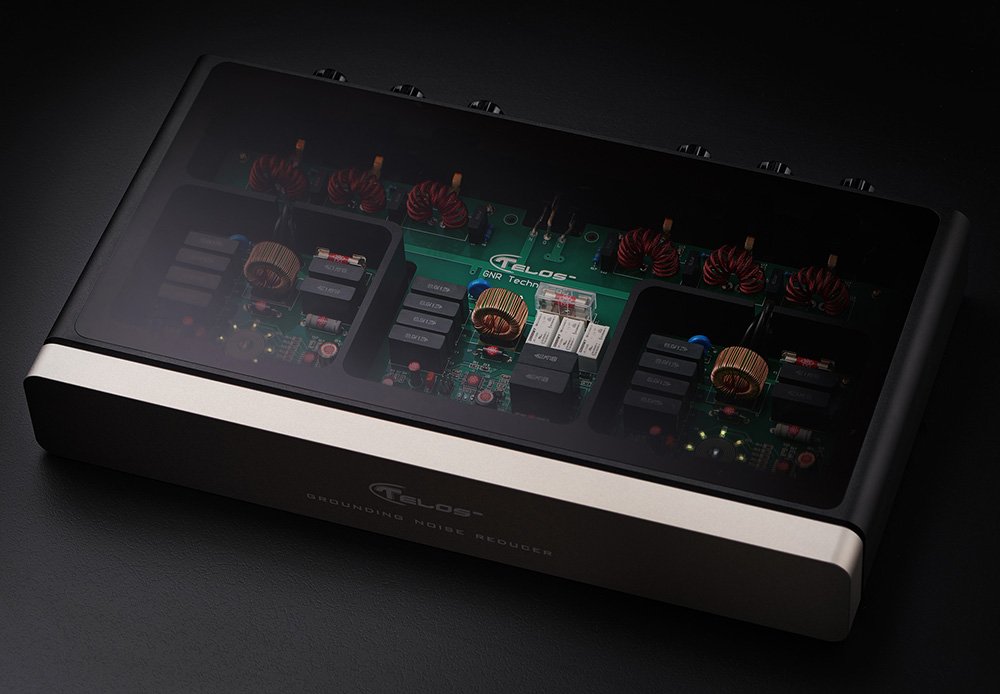

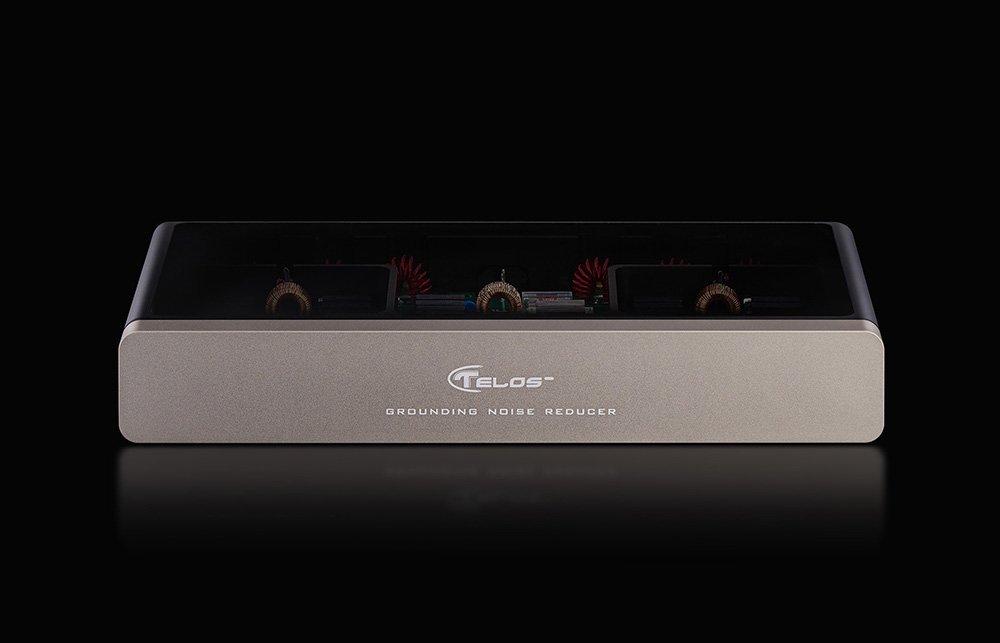

Telos GNR Active Grounding Box
Due to the above limitations, TELOS brings new meaning to grounding implementation.
And this has been proven to be the most elegant way for any audio setup. The TELOS technical team analyzes audio equipment from a unique perspective.
Every piece of audio equipment uses power transformers in order to operate at the correct internal voltage. Hence, each piece of equipment is said to have the primary side and secondary side. The primary side is from the power receptacle, all the way to the input of the transformer. The secondary side is from the output of the transformer to the circuit board. The audio circuitry remains within the secondary side.
The Telos technical team proposes the use of CPU within the GNR to calculate and generate high precision Ground reference voltage.
Grounding is achieved by connecting the audio equipment to the binding posts of Telos GNR that carry the Ground reference voltage. By doing so, GNR is able to truly correct the Ground reference point for the equipment chassis, audio circuitry and the Ground connection.
Using the same analogy as a high precision digital clock, GNR generates low distortion Ground reference voltage, giving each piece of equipment a consistent reference point.
When the audio setup is operating on a singular Ground potential, the signal transmission becomes least impeded, avoiding any transmission loss due to polarity mismatch and bit error.
Therefore, truly achieving the best transmission possible.
Features
- GNR Grounding specialized circuit design

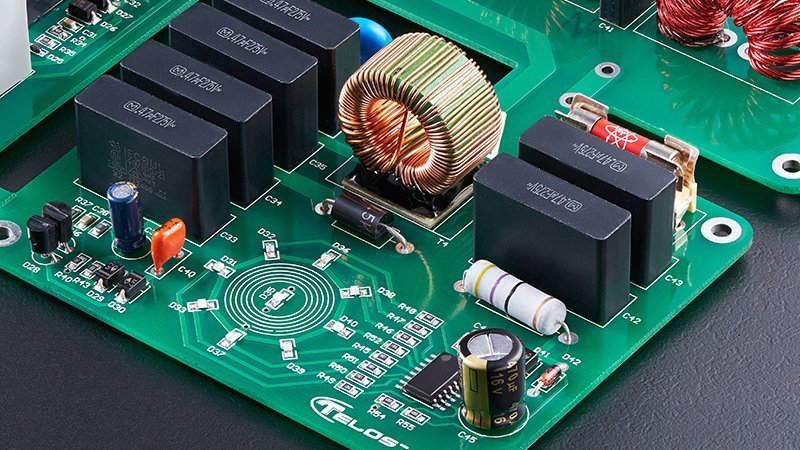

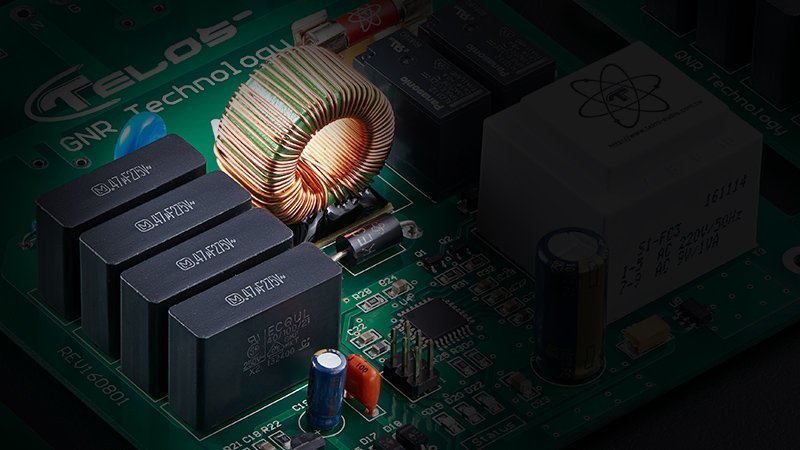

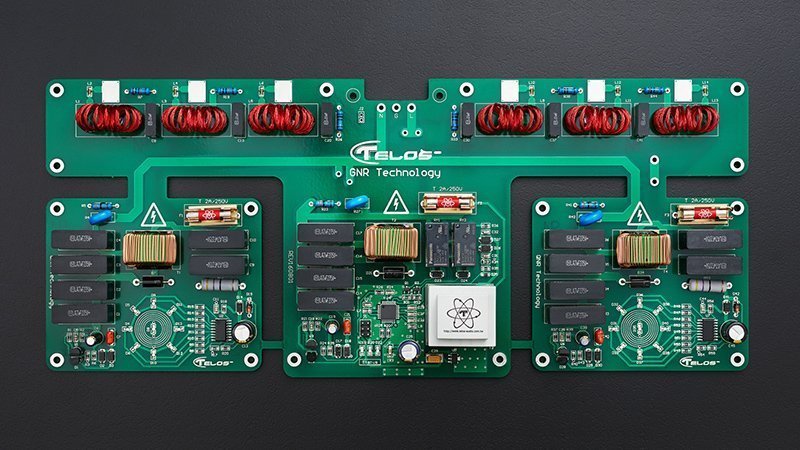

- Each PCB is professionally reviewed and assembled to ensure the best, most stable quality for customers.
Built-in latest corresponding GNR exclusive QNR X2 module.
Telos designed the CPU program, through the exclusive program, real-time automatic computing system power environment, and power lines and FireWire, and provide the best environment to adapt to the user’s environment.

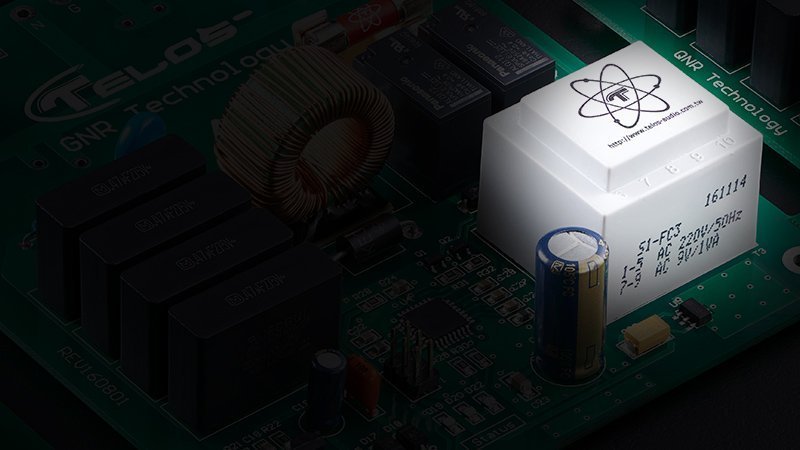

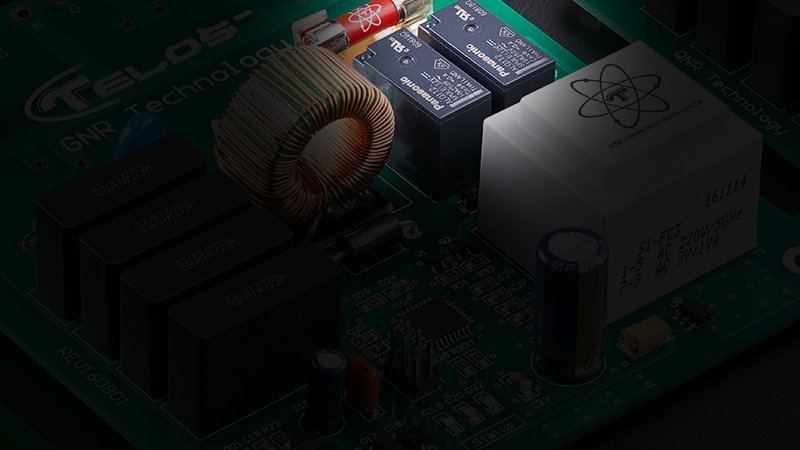

Exclusive power supply for Telos GNR. ensure the best power from the very first source.

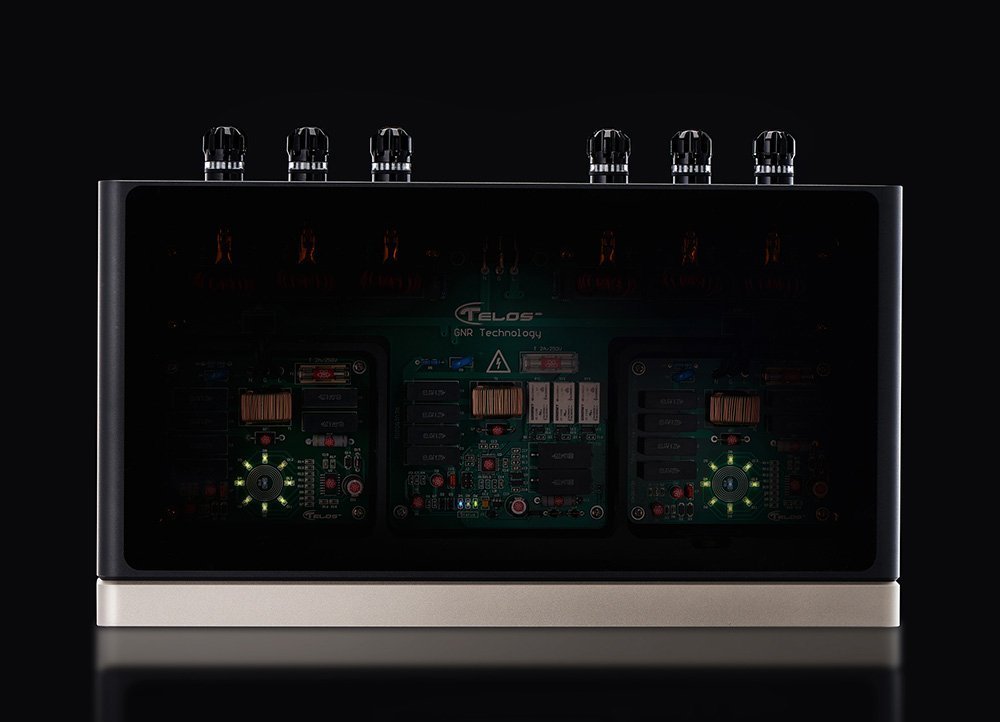

GNR is with 6 sets of zero potential output

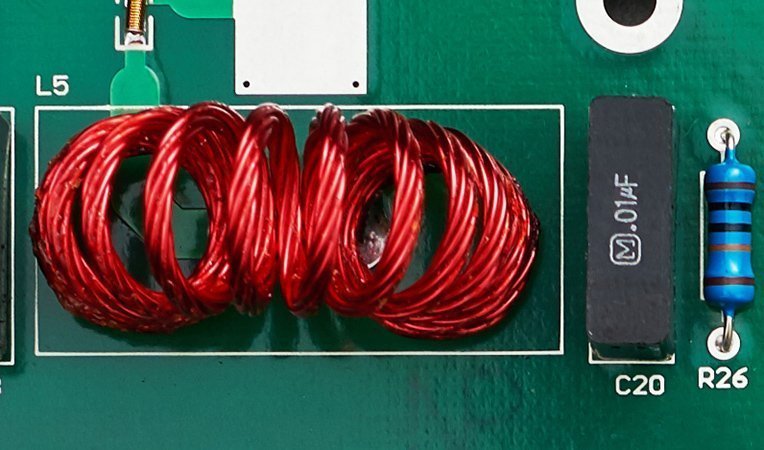

Each output is equipped with hand-made low-pass inductors
Communication level high-pass inductance
By the precise circuit calculation, set the capacitance and resistance
The use of inductance, impedance and capacitive resistance, to avoid the equipment and equipment between the ground pollution.
Standard WBT-0703 cu pole terminal connector
According to WBT, the signal conductor of the WBT-0703 nextgen™ pole terminal is restricted to as low metal mass as possible consisting of pure copper. This does not simply preserve valuable resources, but also eliminates losses in sound quality owing to the mass storage effect. This effect is unavoidable with larger metal masses and has a measurable influence on signal flow.
Telos GNR Active Grounding Box comes with Ground cables of the same materials. Thus each piece of equipment is having the same grounding impedance characteristics, thus greatly reducing the likelihood of coloration.
By having an isolated Ground for your audio setup, the effect is as good as having a dedicated power line. Through the GNR generated Ground potential serving only your audio setup, noise will be totally isolated.
standard connector : RCA, mini spade
Options
gold series ground wire, with exclusive metal bracelet, and more options for the connector, more solid connection compare to the standard ground cable connector :
XLR, RCA, BNC, USB-A, USB-B, mini spade, HDMI, bare connector ( for full metal rack )
Specifications

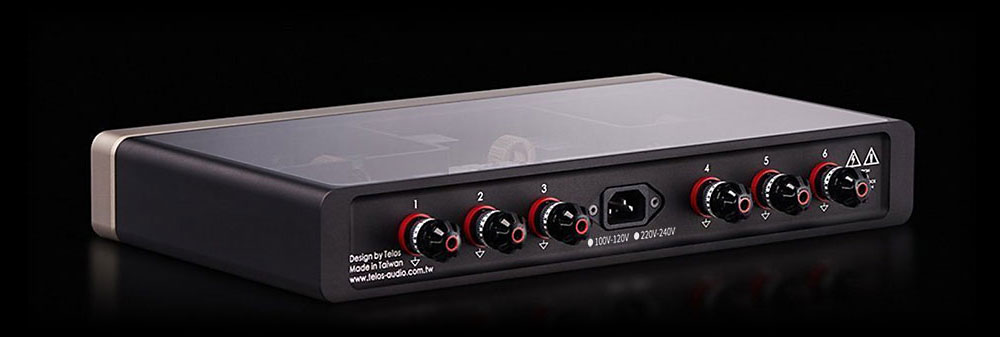

Grounding connectors: 6 x WBT nextgen™ WBT-0703 Cu pole terminal
Power input: 100-120V or 200-240V
Nude packed size: 39 x 24 x 6 (cm)
Nude packed Weight: 7.5kg
Packaged size:48 x 25 x 41(cm)
Packaged Weight: 12.5kg
Accessories
Power cord IEC 60320 C13, NEMA 5-15P, 3P plug x 1 piece (1.8m)
Standard ground wire x 6 pieces (1.5m)
Transparent Rubber Feet:1 set of 4 pieces
