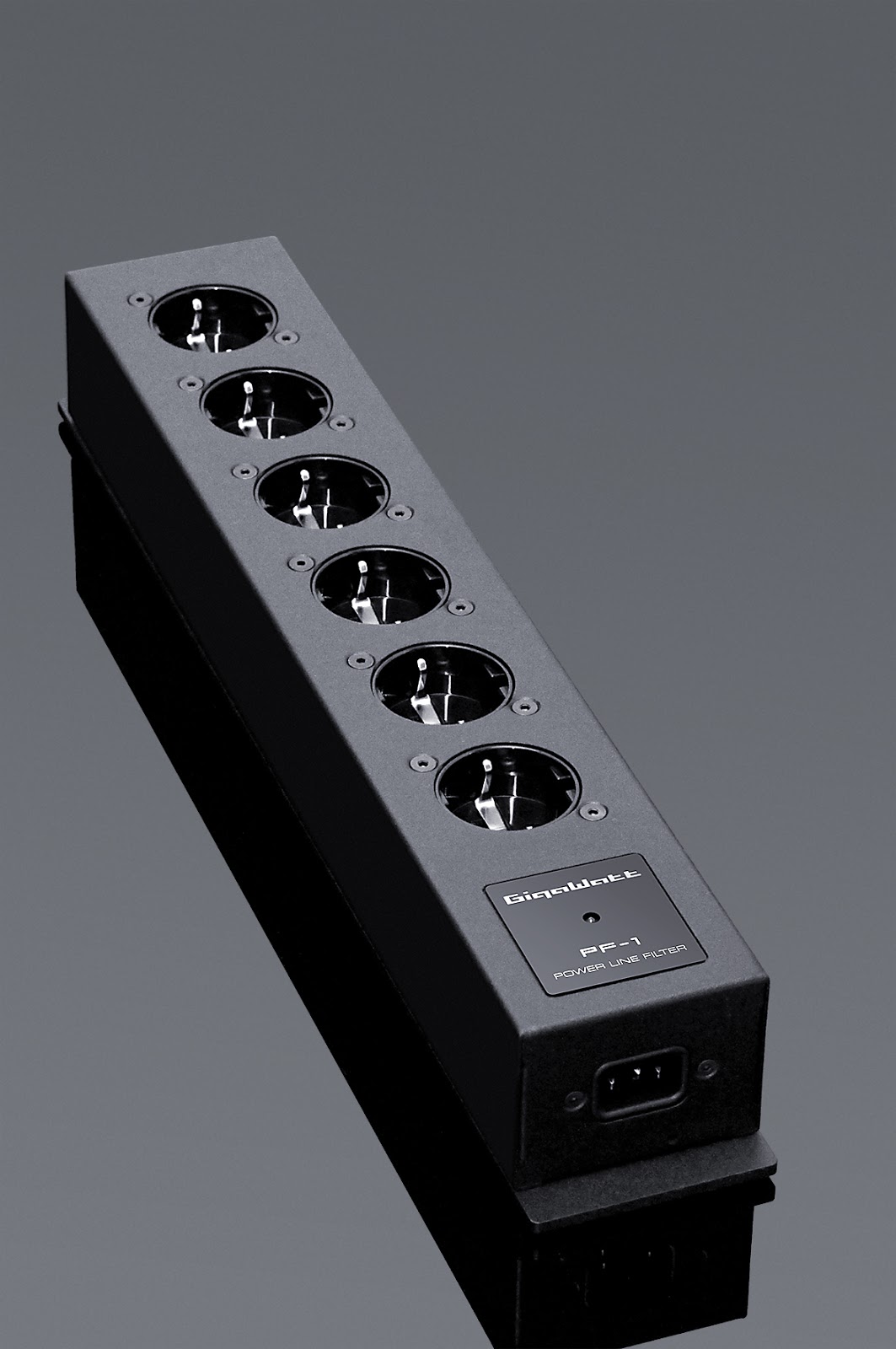

GigaWatt PF-1 EVO+ Power Strip
Supplied with GigaWatt's high quality LC-1 EVO power cord. Made in Poland.
AU sockets
The PF-1 employs the same components and technology found in the more expensive products.
The power strip is equipped with six high quality output sockets with silver plated connectors. The connectors are factory silver plated and intermediate metals like copper or nickel are not used in this process as they could introduce additional serial resistance and voltage drop. All contacts are ferromagnetic-free and the thick silver layer guarantees good contact with the plugs and significantly lowers the impedance of the connection. The PF-1 also has a high quality IEC socket and GigaWatt’s own 1.5m LC-1 EVO power cord.
The massive and durable chassis is made of metal. This creates a perfectly closed shield, protecting the inside filter and power distribution system from RFI noise. The chassis is electrically connected to the PE cable and provides electrical safety, as confirmed by independent tests done by certifying labs. The main feature of the PF-1 power strip is a triple passive filter and a unique system of voltage distribution to the separate sockets. This proprietary power distribution system is based on three massive bars with a cross-section of 30mm 2 each, made from slabs of pure copper. Separate bars for each of the sockets guarantee an even and stable power distribution, regardless of the load on each of the sockets. This system, together with internal wiring of large cross-section and cramped connections, guarantees reliability.
The PF-1 is also equipped with an LED, signaling correct function and power available to the sockets.
The modern construction of the PF-1 negates the need for traditional protection features like thermal or blow fuses.
Specifications
Line voltage: 220-240 v / 50-60 Hz
Maximum load (continuous): 16A
Absorbed impulse current: 20,000A
Dimensions: 420 x 75 x 57 mm
Gross weight: 3.05kg
Also available with optional LC-2 EVO Power Cord. This option is an extra $500.
