HANA EH/EL High/Low Output MC Cartridges

HANA EH/EL MC Cartridge Synthetic Elliptical stylus: Choose High or Low Output

The Hana EH/EL cartridges have a synthetic Elliptical diamond stylus fitted to a high rigidity aluminum cantilever with cross-shaped armature, offering super transparency and excellent trackability. The body is manufactured from a composite low resonance plastic material in dark green.

This competitively priced Low output moving coil cartridge offers great quality sound referenced against similar priced cartridges.


Click images to enlarge

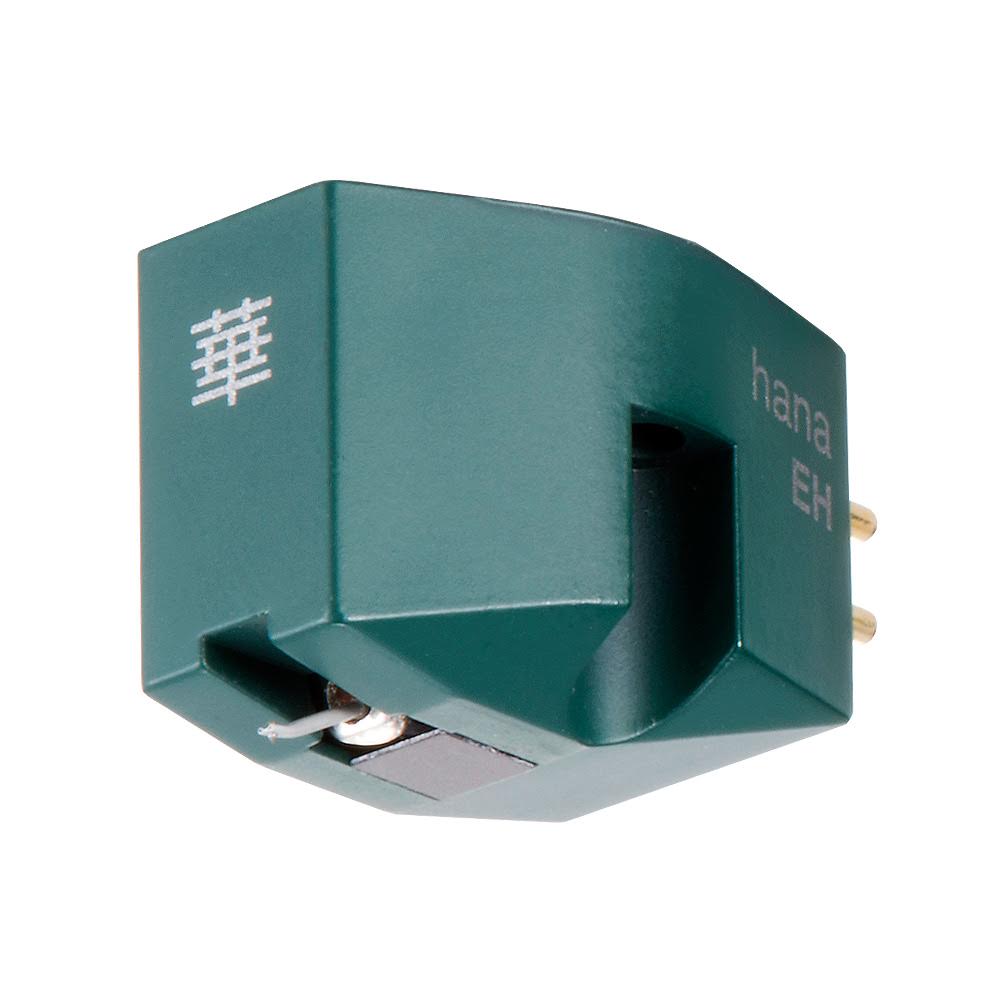

Specifications: High Output Hana EH

Model: Hana EH
Stylus: Synthetic Elliptical
Cantilever: Aluminium
Output Level: 2mV/1kHz
Output Balance: <2dB/1kHz
Vertical Tracking Force: 2 gr.
Trackability: 70µm/2gr.
Channel Separation: 25dB/1kHz
Frequency Response: 15~25,000Hz
Impedance: 130O/1kHz
Suggested Load Impedance: 47kO
Cartridge Weight: 5 gr.
Body Color: Moss Green

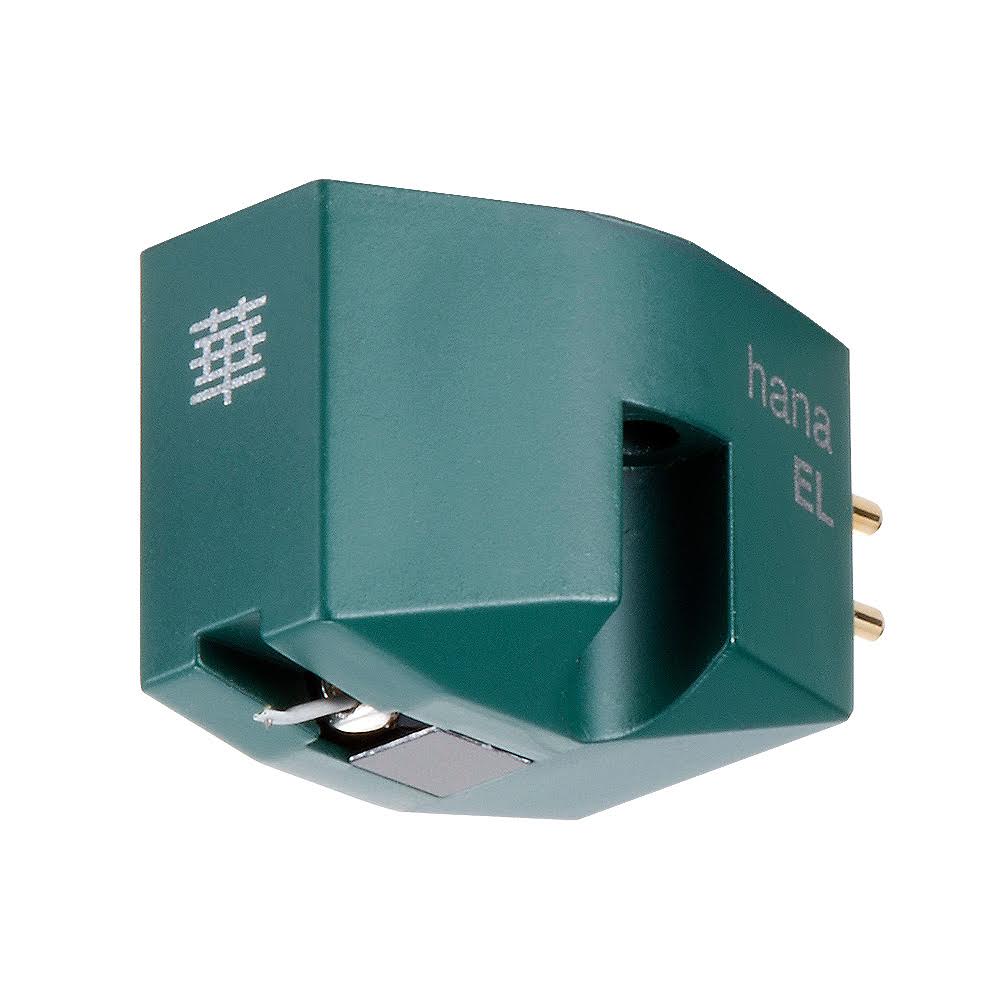

Specifications: Low Output Hana EL

Model: Hana EL
Stylus: Synthetic Elliptical
Cantilever: Aluminium
Output Level: 0.5mV/1kHz
Output Balance: <2dB/1kHz
Vertical Tracking Force: 2 gr.
Trackability: 70µm/2gr.
Channel Separation: 25dB/1kHz
Frequency Response: 15~25,000Hz
Impedance: 30O/1kHz
Suggested Load Impedance: >400O
Cartridge Weight: 5 gr.
Body Color: Moss Green

Read the Hana EH/EL brochure here
