HANA SH/SL High/Low Output MC Cartridges

HANA SH/SL MC Cartridge: Nude Diamond Shibata stylus. Choose High or Low Output

The Hana SH/SL Moving Coil cartridges have a nude natural diamond Shibata-stylus, and use high rigidity aluminum cantilevers with cross-shaped armatures, offering supreme transparency and excellent trackability. The body is manufactured from a composite low resonance plastic material in black.


Click images to enlarge

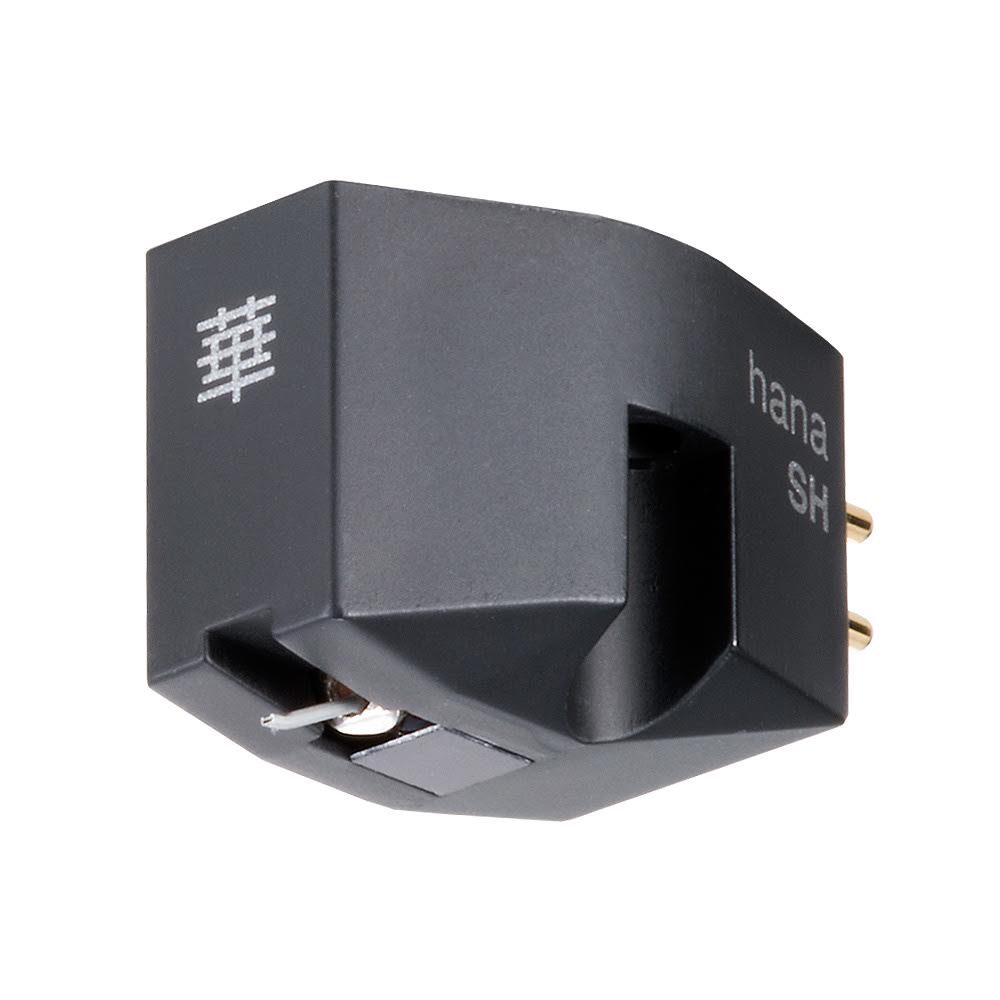

Specifications: High Output Hana SH

Model: Hana SH
Stylus: Nude Diamond Shibata
Cantilever: Aluminium
Output Level: 2mV/1kHz
Output Balance: <1.5dB/1kHz
Vertical Tracking Force: 2 gr.
Trackability: 70µm/2gr.
Channel Separation: 28dB/1kHz
Frequency Response: 15~32,000Hz
Impedance: 130O/1kHz
Suggested Load Impedance: 47kO
Cartridge Weight: 5 gr.
Body Color: Black

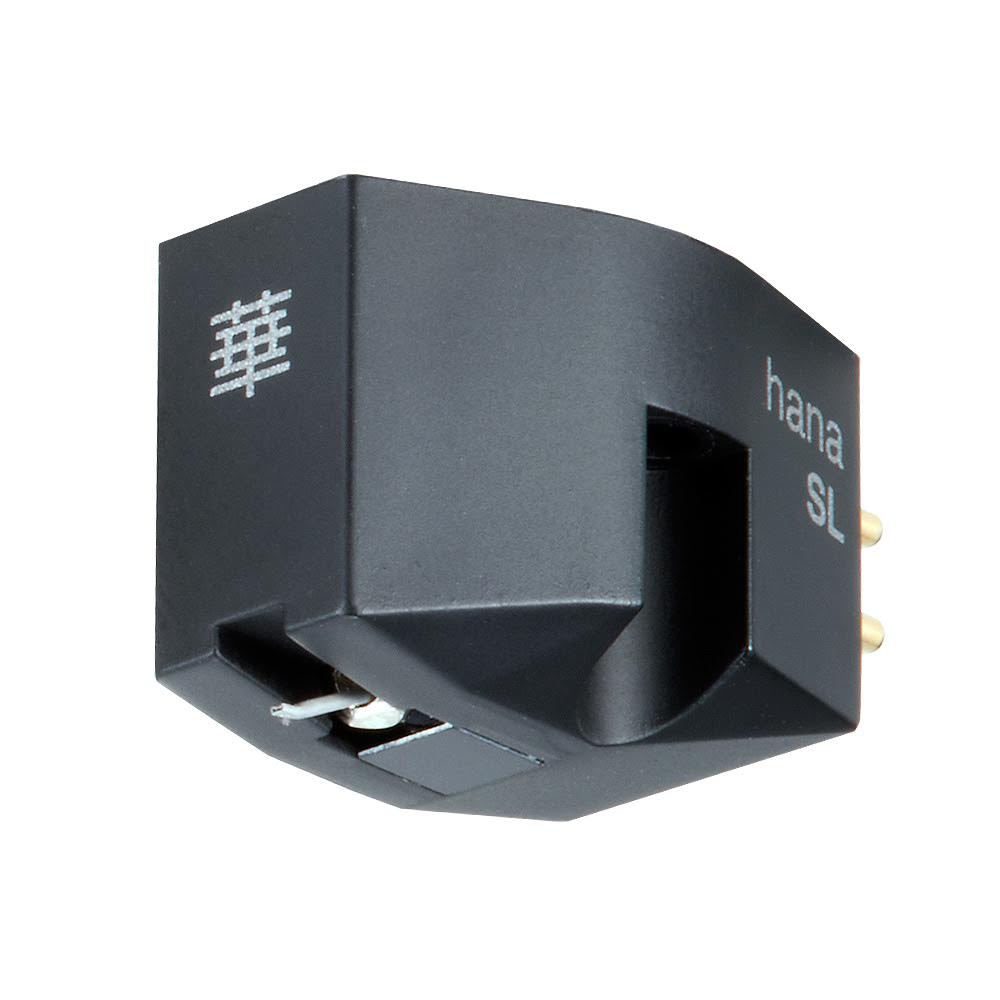

Specifications: Low Output Hana SL

Model: Hana SL
Stylus: Nude Diamond Shibata
Cantilever: Aluminum
Output Level: 0.5mV/1kHz
Output Balance: <1.5dB/1kHz
Vertical Tracking Force: 2 gr.
Trackability: 70µm/2gr.
Channel Separation: 28dB/1kHz
Frequency Response: 15~32,000Hz
Impedance: 30O/1kHz
Suggested Load Impedance: >400O
Cartridge Weight: 5 gr.
Body Color: Black

Read the Hana SH/SL brochure here
