Vimberg MINO 3-Way Loudspeaker

Vimberg MINO 3-Way Loudspeaker

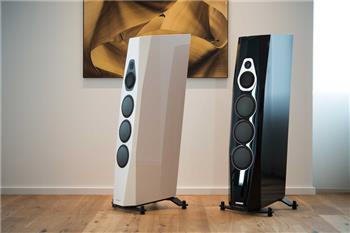

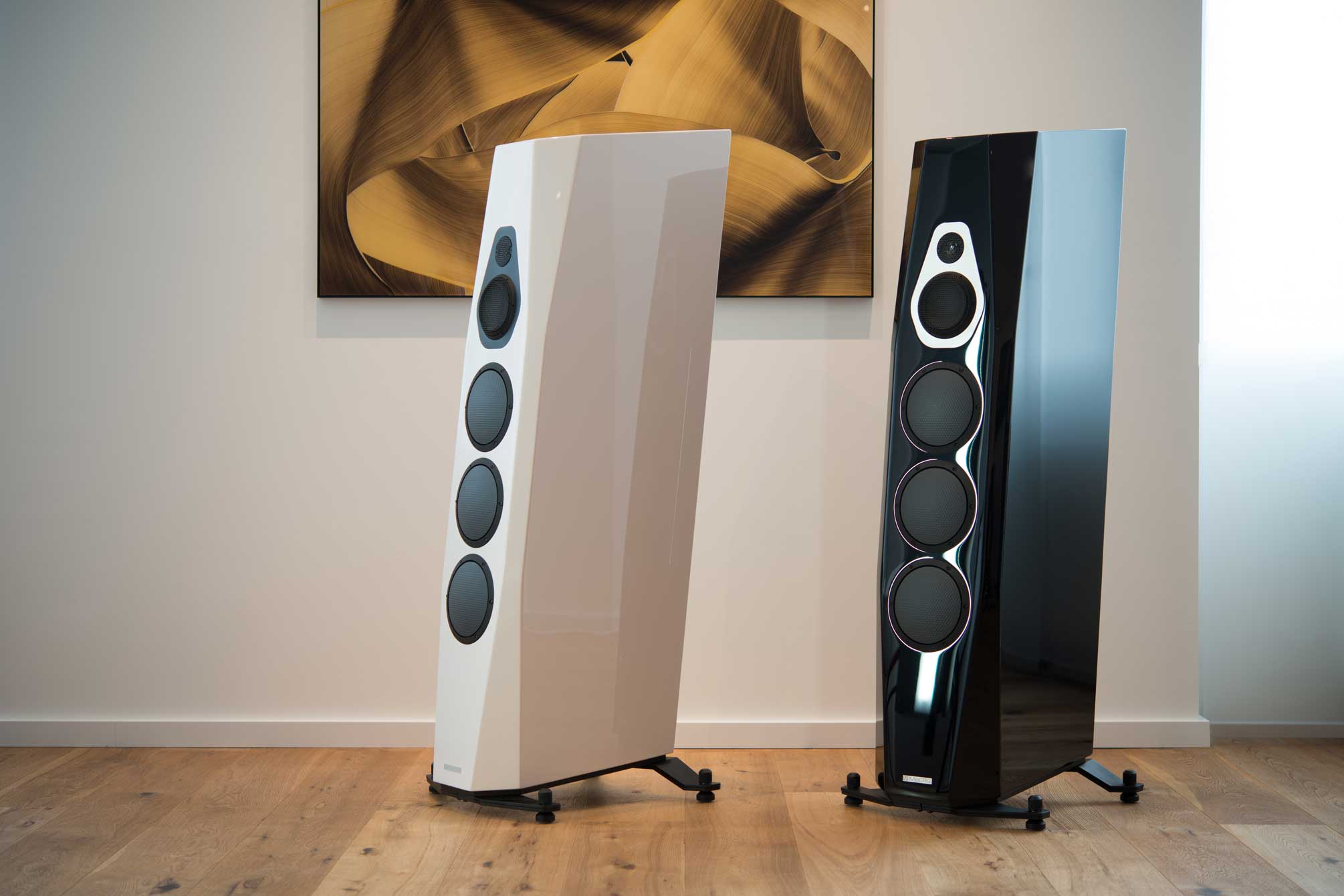

A breathtaking fullrange experience within modest dimensions - the VIMBERG Mino.

"The extremely neutral and precise Mino plays in the uppermost echelons. Plasticity, dynamics and accuracy in exquisite material quality. Rather it is honest, and that’s what distinguishes the entire speaker. It embodies pure neutrality. The timing is almost unbelievable, as is the attention to detail and the pinpoint accuracy over the entire transmission range. Seamless dynamics, but also exquisite tonality should please the fans of classical music. In fact, this speaker is sensationally accurate, making it exciting and extremely fun!"
- T. Frantzen, STEREO

Mino or Mino D?

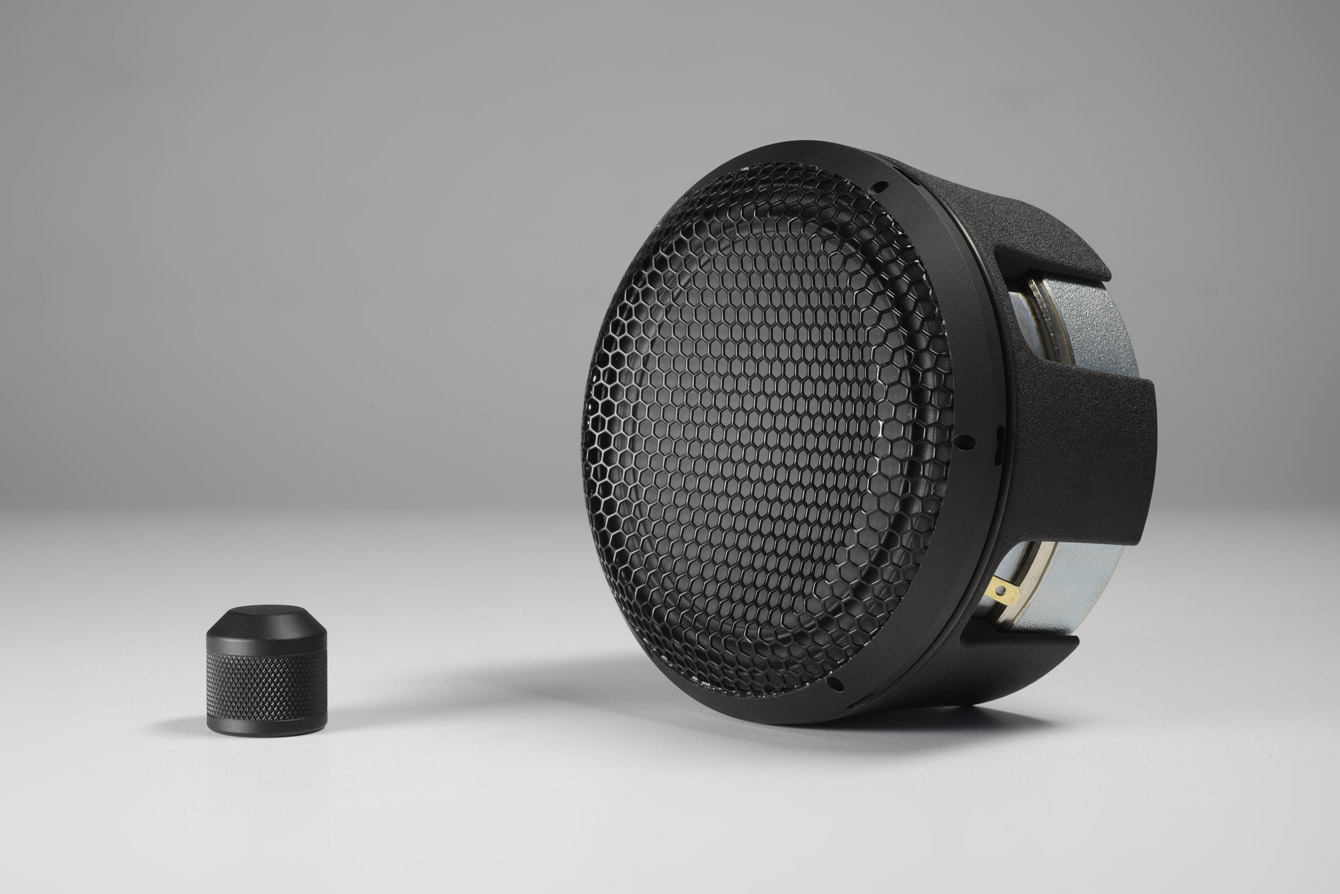

You have the choice: the Mino comes with a 30 mm ceramic tweeter or optional with a 30 mm diamond tweeter. With our unique VIMBERG crossover technology the ceramic tweeter offers a clarity and openness in the high frequency level rarely heard. And for those who want to have the reference choice we do offer the even more exquisite 30 mm pure diamond tweeter option - and call it Mino D.

Ceramic midrange.
The Mino is being equipped with a 90 mm Accuton ceramic midrange woofer. Despite of its very hard and light diaphragm we managed to integrate this driver without any kind resonances at all and blend it perfectly into the tweeter and the woofers. Like no other.

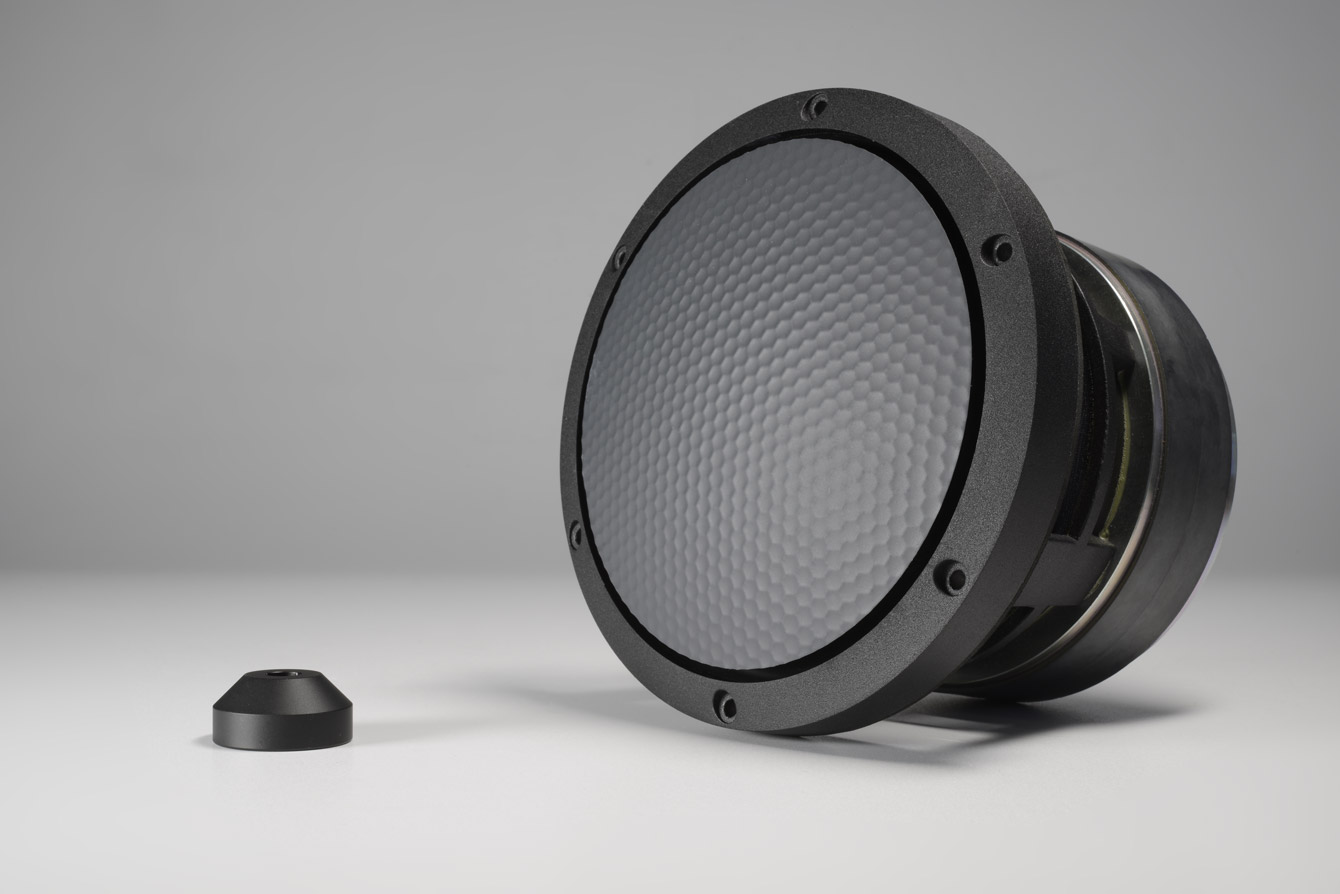

Aluminium sandwich woofer.
As woofers we do use three 168 mm Accuton woofers with 3D shaped honeycomb sandwich diaphragm made out of aluminum. These woofers do run in a perfectly calculated volume of air volume inside the Mino cabinet to reproduce an extreme fast and deep bass. Like no other.

- 3-way fullrange loudspeaker
- VIMBERG™ MRD-cabinet made out of waterproof high density fiberlaminate and reinfocring aluminum elements for all drivers
- 1 x 30 mm Accuton™ Cell ceramic tweeter
- 1 x 90 mm Accuton™ Cell ceramic midrange woofer
- 3 x 168 mm Accuton™ Cell woofer, long excursion design with 3D shaped honeycomb sandwich diaphragm
- optional: 30mm Accuton™ Cell diamond tweeter (Mino D), also upgradeable anytime later
- highend Mogami™ speaker cable wiring inside, Argento™ binding posts
- highend crossover with VIMBERG™ monopulse technology: linear frequency response with optimized impulse response
- exclusive use of Mundorf™ & Duelund™ components
- Dual-Tune bassreflex port design for lowest port noise and selectable F3
- Decoupling height adjustable isolation gliders and 3D-shaped installation triggers for optimized setup and placement to every floor
- Exclusive VIMBERG™ real piano lacquer: summit white or jet black
- nominal impedance: 4 ohm (lowest point: 3.8 ohm at 100Hz)
- efficiency at 2.83V/1m/1KHz: 89dB
- Weight without packagaing: 2 x 72 Kg (2 x 159 lbs.)
- Weight incl. packaging: 2 x 83 Kg (2 x 183 lbs.)
- Weight incl. optional ATA flightcases: 2 x 108 Kg (2 x 238 lbs.)
- Shipment dimensions: W 40cm x L 155 cm x H 60 cm
